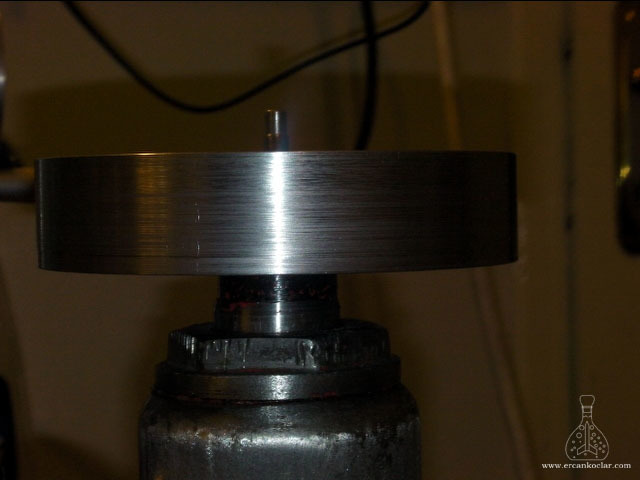

• 10 ton hydraulic press
• 10 ton hydraulic jack was used
• 100 bar gauge was attached
• With antipasti and oil painting, painted
• Operations must be performed only by person skilled!!!

CALCULATION

1. Pressure gauge shows the bar
2. Bar,  does not equal to KG
3. Calculation;

• Inner diameter of the tube is measured
• Surface area is calculated-(formula=π.r²)( hydraulic oil pressure in it area)
• 1 bar 1 mm² to 0.1 newton
• 1kğ = 9,81 newton (acceleration of gravity)

Calculate the real power of hydraulic presses

1. Surface area = 3,14 cm x 3,24 cm  = 10,17 cm² =1017 mm²
2. 1017 mm² x 0.1 newton = 101.7 newton ( 1 bar also 1017 mm² area ->  The force applied by the hydraulic press )
3. 101.7 newton / 9.81 = 10.3 kg
4. Result : 1017 mm² surface area of the hydraulic press – 1 bar also the force a exerted, equal ->10.3 kg  ;)

Technical Plan

• Hydraulic Press My Plan ( password : www.ercankoclar.com)
• Hydaulic Press Inventor Files (password : www.ercankoclar.com)
